Description

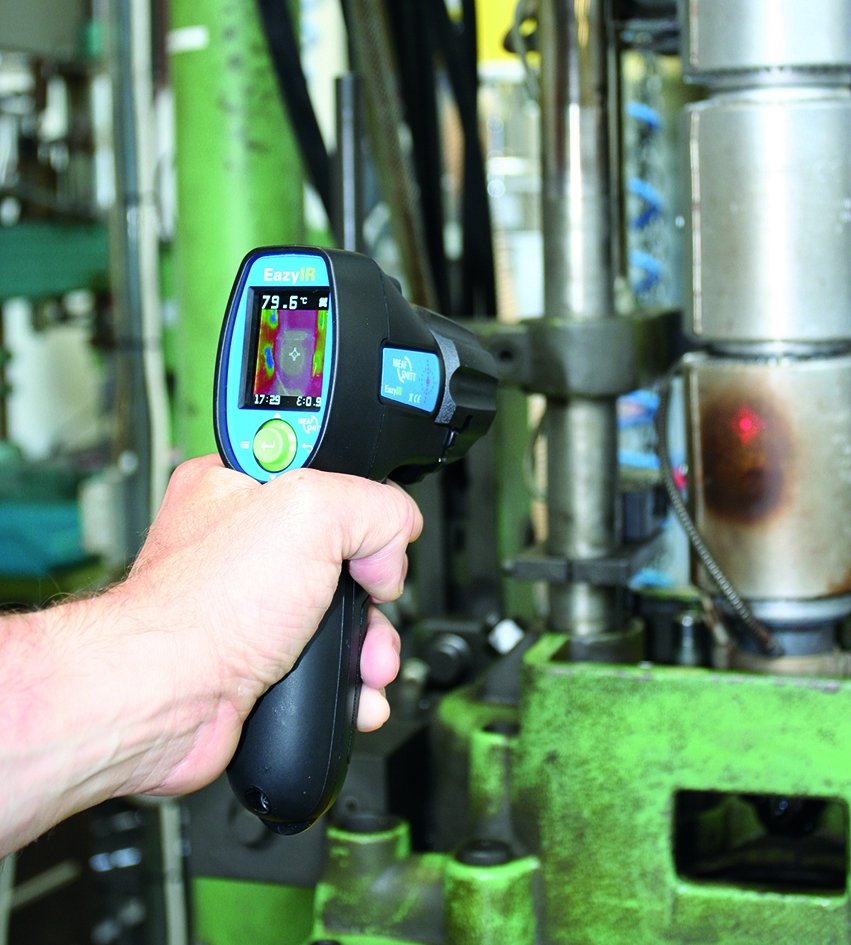

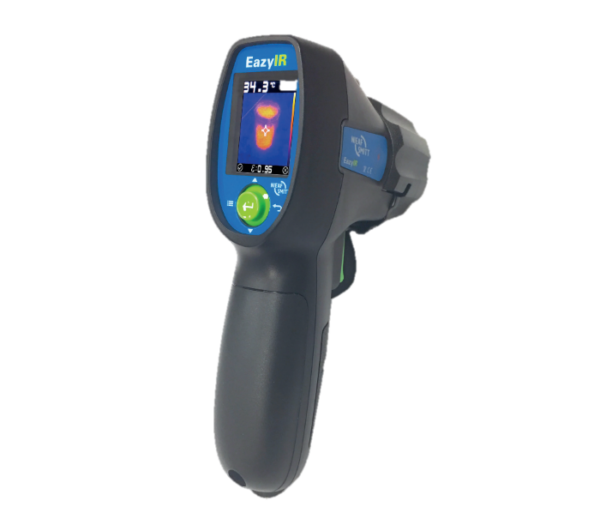

The EazyIR is the ideal tool for detecting hot spots, heat patterns and accurate and contactless measuring of temperature. The “point and shoot” principle of the EazyIR makes it possible to quickly and easily detect and analyze a temperature deviation. Images can be stored directly on the included SD card and later added to reports via the PC.
Target audience
Because of the simplicity of use, robust design and the large temperature range, the EazyIR is the right tool for anyone who regularly faces temperature issues. At this point you could think of:
-
Maintenance services
-
Inspectors
-
Process monitoring
-
E-Installers
-
HVAC installers
-
General industry and utility
Characteristics
-
Ergonomic “gun” design
-
High optical resolution of 30: 1 for accurate temperature measurement
-
Easy operation via 1 navigation button
-
Precision laser pointer with spot diameter indication
-
Integrated tripod mounting possibility
-
Short start-up time
-
Temperature range from -30 ° C to 650 ° C
-
Readout in ° C or ° F
-
Adjustable color palette (Rainbow, “Hot iron” and Black and white)
-
Battery indicator
-
Storage on SD card (included)
-
LED lamp for lighting in dimly lit areas
-
UV LED for leak detection
-
Including
-
Micro SD card
-
USB cable
-
Software
-
Batteries
-
instructions
Specifications
| Function | Range |
| Temperature | -30 °C … +650°C |
| Resolutie | 0.1°C |
| Emissivity correction | Adjustable 0.1…1.0 in steps 0.01 |
| Optical resolution | 30:1 |
| Accuracy | ± 1.5°C of ± 1.5 % |
| Display color | Color 1.7 inch 128 x 160 pixels |
| Field of view | 30° x 30° |
| Spectral range | 8 µm…14 µm |
| Minimum focus | 30 cm |
| Thermal sensitivity | 150 mK |
| Resolution | 128 x 128* |
| General | |
| Detector | IR array |
| Laser pointer | Class II laser with spot indicator |
| IP-value | IP54 |
| Fall test | 1.2 meters |
| Storage | Op meegeleverde micro SD kaart |
| Power supply | 3 x AA batteries (included) (capacity 16 hours) |
| Dimensions | 183 x 103 x 59 x cm |
| Weight | 0.3 kg |
