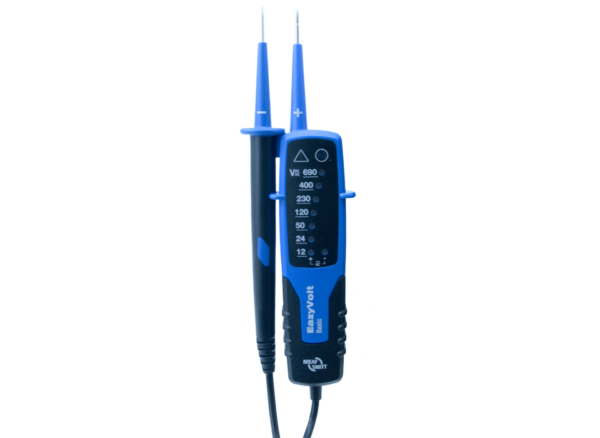

Description
The EazyVolt Basic is a compact reliable robust automatic voltage tester up to 690V, with the following functions:
- Measuring AC voltage
- Measuring DC voltage
- Singel-Pole Phase detection
- Continuity
Features
- Fully automatic
- Fail safe (no battery for VAC/DC measurement)
- Audible sound (when battery is OK)

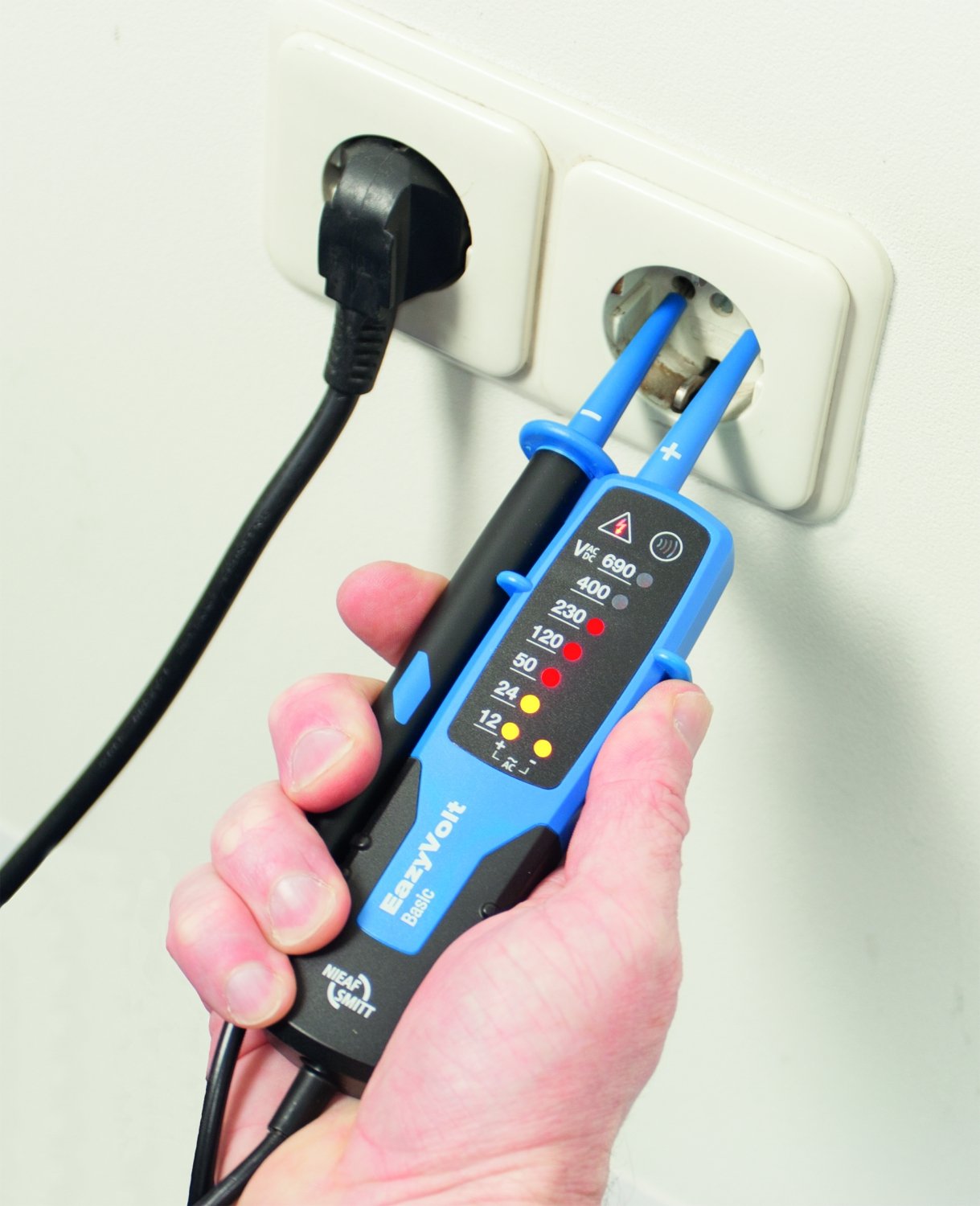

- Schuko outlet compliant (19 mm)
- 1 hand operation
Including
- Batteries
- Manual
Specifications
|
Function
|
Range
|
|
Voltage
|
10…690V AC
|
|
Continuity
|
0…500kΩ + 50%
|
| General | |
|
Auto power on
|
>12 VAC/DC
|
|
LED resolution
|
12, 24, 50 120, 230, 400, 690 V |
|
Voltage detection
|
automatic
|
|
Response time
|
< 1 s @ 100 % from each nominal value |
|
Frequency range
|
50…60 Hz
|
|
Continuity
|
0…500kΩ + 50%
|
| Over voltage protection | CAT III 600V / CAT II 690V |
| Supply | 2x 1.5 V AAA batteries |
| IP protection | IP 54 |
| Standard |
EN/IEC 61243-3:2014
|
| Dimensions | 221 x 61 x 27 (mm) |
| Weight | 155g (incl. batteries) |
| Including | batteries, manual |
Order number: 626002000
