Description
This product is obsolete.

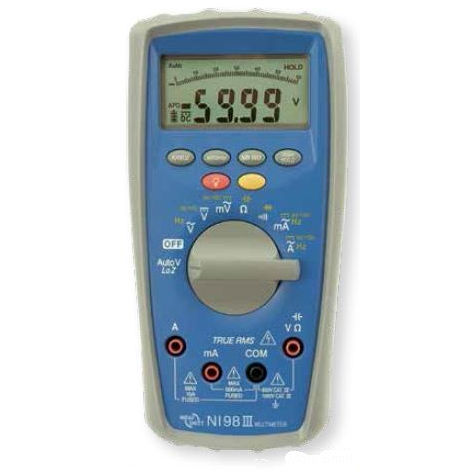

True RMS CAT IV multimeter
Because of the integrated True RMS technique, the NI 98III is a very accurate, professional and excellent multimeter. Automatic detection of AC/DC voltage and AutoV LoZ functionality (supressing ‘ghost voltages’) make a very complete multimeter.
A clear display with backlight and the sturdy, ergonomical shape of the housing make the instrument very user friendly. The utility case has a removable protective holster with built-in stand (for workbench applications).
Features
- True RMS
- AC/DC voltage
- AC/DC current
- AC+DC measuring
- Resistance, capacity and frequency
- Continuity- / diodetest
- Smart hold
- Min-max hold
- CAT IV
- AutoV LoZ (detection of ‘ghost voltages’)
- Voltsense (non-contact voltage detection)
- Autoranging
- Analoge bargraph
- Clear display
Specifications
| Function | Range |
Accuracy
|
|
Voltage
|
1000 VAC
1000 VDC
|
+ 1.5 % + 5d
+ 0.09 % + 2d
|
|
Current
|
10 AAC
10 ADC
|
+ 1.5 % + 3d
+ 1.0 % + 3d
|
|
Frequency
|
4 mHz
|
+ 0.1 % + 2d
|
|
Resistance
|
40 MΩ
|
+ 0.8 % + 2d
|
|
Capacity
|
4000 μF
|
+ 3.0 % + 5d
|
|
General
|
|
|
Display resolution
|
6000 d
|
|
Overvoltage category
|
CAT III 600 V / CAT IV 1000 V
|
|
Standard
|
EN 61010-1
|
|
Supply
|
1x 9 V battery
|
|
Dimensions
|
190 x 94 x 48 mm
|
|
Weight
|
± 460 g
|
| Including | Test leads, alligator clamp, protective holster, hanging kit, battery, manual |
