Relay sockets & accessories for power relays

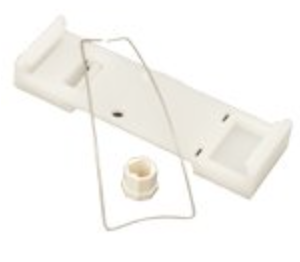

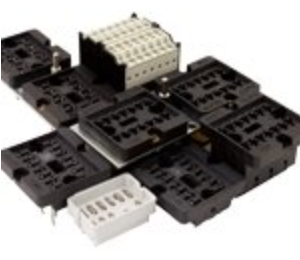

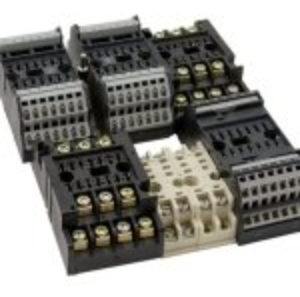

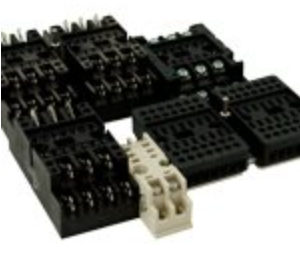

Suitable for 35mm rail (DIN), wall or PCB mounting, timer modules, key receptables and retaining clips. See below for all models/series.

  • EA 111 relay socket

    Read more The EA 111 is a relay socket for all A/B platform relays, with two highly reliable spring clamp terminals per socket. The socket can be mounted on a surface/wall and 35 mm rail. Hexagonal plastic keys and round plastic plugs are provided for relay type coding, not inserted. Keying can be provided as an option. (more…)
  • V16 socket Screw terminal, wall rail mount

    Read more The V16 is a surface / wall and 35 mm rail mount relay socket. The V16 socket is suitable for two stripped wires up to 3.3 mm2, so looping/daisy chaining can be done on the socket and no external connector or terminal is needed. Equipped with an integrated retaining clip. To prevent fault relay placement the socket can be equipped with mechanical keying to accept only designated identical keyed relays.…
  • V18 socket – PCB mount

    Read more The V18 is a relay socket for soldering on PCB. The relay will be plugged into the socket, the socket will be soldered on the PCB. There is only one way of connecting the relay to the socket to guarantee correct placement of the relay. Equipped with an integrated retaining clip. To prevent fault relay placement the socket can be equipped with mechanical keying to accept only designated identical keyed…
  • V22BR socket – Screw terminal, wall mount

    Read more The V22BR is a surface / wall mount relay socket with extra space for ring tabs. The V22BR socket has one screw terminal per relay contact suitable for two wires up to 2.5 mm2 and 9 mm ring tabs, so looping/daisy chaining can be done on the socket and no external connector or terminal is needed. To prevent fault relay placement the socket can be equipped with mechanical keying to…
  • V23 socket – Screw terminal, wall/rail mount

    Read more The V23 is a surface / wall and 35 mm rail mount relay socket. The V23 socket has one screw terminal per relay contact suitable for two wires up to 2.5 mm2, so looping/daisy chaining can be done on the socket and no external connector or terminal is needed. The V23 relay socket has no internal soldering connections which makes it highly reliable. To prevent fault relay placement the socket…
  • V23BR socket – Screw terminal, rail mount

    Read more The V23BR is a 35 mm rail mount relay socket with extra space for ring tabs. The V23BR socket has one screw terminal per relay contact suitable for two wires up to 2.5 mm2 and 9 mm ring tabs, so looping/daisy chaining can be done on the socket and no external connector or terminal is needed. To prevent fault relay placement the socket can be equipped with mechanical keying to…
  • V26 socket – Crimp terminal, panel mount

    Read more The V26 is a panel mount relay socket with one terminal per relay contact. The wires are crimped on separate crimp contacts A260 for insertion after crimping. To prevent fault relay placement the socket can be equipped with mechanical keying to accept only designated identical keyed relays. (more…)
  • V29 socket – Spring clamp terminal, wall/rail mount

    Read more The V29 is a surface / wall and 35 mm rail mount relay socket. The V29 socket has two highly reliable spring clamp terminals per relay contact, so looping/daisy chaining can be done on the socket and no external connector or terminal is needed. The spring clamp terminal makes a quick connection possible by pressing the spring with a flat-bladed screwdriver and inserting the stripped wire. Solid and (fine) stranded…
  • V3 socket – Soldering terminals, panel mount

    Read more The V3 is a panel / flush mount relay socket for soldering wires onto solder tags. The V3 socket has one terminal per relay contact. The V3 relay socket has no internal connections which makes it highly reliable. To prevent fault relay placement the socket can be equipped with mechanical keying to accept only designated identical keyed relays. (more…)
  • V31 socket – Faston terminal, panel mount

    Read more The V31 is a panel mount relay socket. The V31 socket has two faston connections per relay contact, so looping/daisy chaining can be done on the socket and no external connector or terminal is needed. To prevent fault relay placement the socket can be equipped with mechanical keying to accept only designated identical keyed relays. Clear UP arrow for correct mounting. (more…)
  • V32 socket – PCB mount

    Read more The V32 is a relay socket for soldering on PCB. The relay will be plugged into the socket, the socket will be soldered on the PCB. There is only one way of connecting the relay to the socket to guarantee correct placement of the relay. (more…)

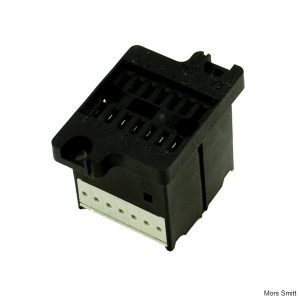

  • V33 socket – Spring clamp terminal, panel mount

    Read more The V33 is a panel/flush mount relay socket. The V33 socket has a base with two highly reliable spring clamp terminals per relay contact, so looping/ daisy chaining can be done on the socket and no external connector or terminal is needed. The spring clamp terminal makes a quick connection possible by pressing the spring with a flat-bladed screwdriver and inserting the stripped wire. Solid and (fine) stranded wires up…

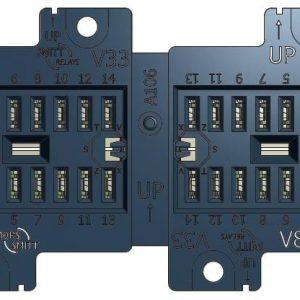

  • V88 socket – Spring clamp terminal, panel mount 8 pole

    Read more The V88 is a panel/flush mount relay socket. The V88 socket has a base with two highly reliable spring clamp terminals per relay contact, so looping/ daisy chaining can be done on the socket an no external connector or terminal is needed. The spring clamp terminal makes a quick connection possible by pressing the spring with a flat-bladed screwdriver and inserting the stripped wire. Solid and (fine) stranded wires up…
  • V89 socket – Faston terminal, panel mount 8 pole

    Read more The V89 is a panel mount relay socket. The V89 socket has two faston connections per relay contact, so looping/daisy chaining can be done on the socket and no external connector or terminal is needed. To prevent fault relay placement the socket can be equipped with mechanical keying to accept only designated identical keyed relays. Clear UP arrow for correct mounting. (more…)
  • V92BR socket – Screw terminal, wall mount 8 pole

    Read more The V92BR is a surface / wall mount relay socket with extra space for ring tabs. The V92BR socket has one screw terminal per relay contact suitable for two wires up to 2.5 mm2 and 9 mm ring tabs, so looping/daisy chaining can be done on the socket and no external connector or terminal is needed. To prevent fault relay placement the socket can be equipped with mechanical keying to…
  • V93 socket – Screw terminal, wall/rail mount 8 pole

    Read more The V93 is a surface / wall and 35 mm rail mount relay socket. The V93 socket has one screw terminal per relay contact suitable for two wires up to 2.5 mm2, so looping/daisy chaining can be done on the socket and no external connector or terminal is needed. The V93 relay socket has no internal connections which makes it highly reliable. To prevent fault relay placement the socket can…
