Description

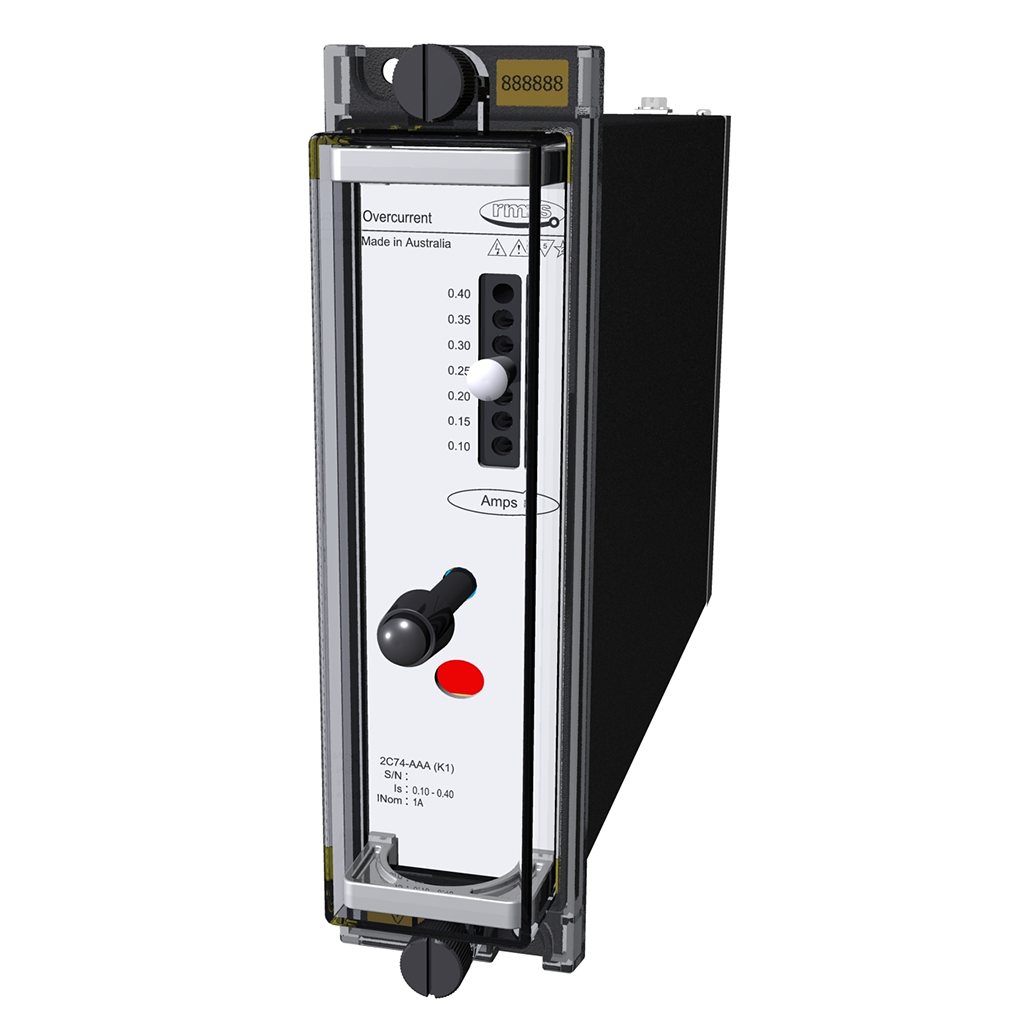

The 2C74 relay provides high speed overcurrent protection for various items of power system plant such as frame earth leakage protection of metal clad switchgear & tank earth fault protection of sub-station power transformers. The 2C74 relay is a single phase device built in a compact size 2M draw out case suitable for rack and flush mounting. Where 3 phase monitoring is required, 3 single phase units should be employed. The relay measuring element is basically an attracted armature unit of simple & rugged construction. The operating coil of this unit is energised from a transformer which is tapped to provide seven (7) current settings. Setting is achieved using a plug bridge arrangement on the front panel.
Features
-
High speed operation
-
High sensitivity
-
50Hz or 60Hz operation
-
Seven (7) current settings using a plug bridge
-
Choose from 5 setting ranges
-
<10ms operation at 5x setting
-
Hand reset mechanical flag
-
2 N/O trip contacts
-
Rugged attracted armature sensing element
-
Use 3 independent units for 3 phase applications
-
Size 2M28 draw out case
-
Made in Australia
