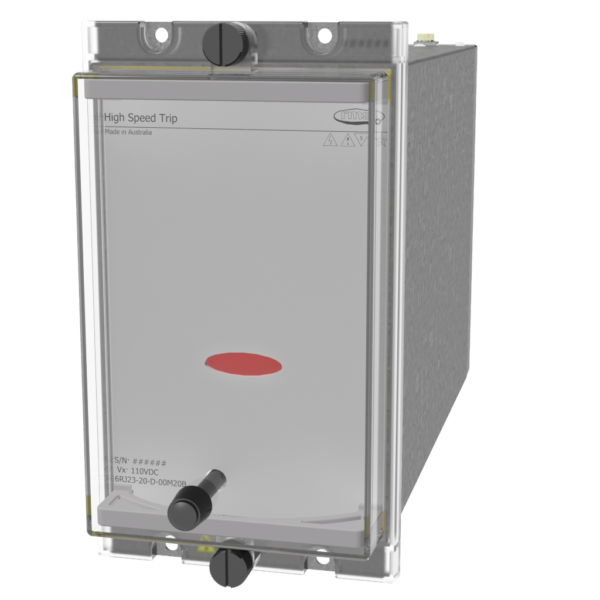

6R MATRIX Auxiliary, Trip & Supervision


The 6R MATRIX range has been developed to provide design engineers with a modular system of auxiliary relays to meet a wide variety of system configurations.

The 6R MATRIX system provides design engineers a high degree of flexibility to specify a custom relay configuration (Contacts, voltage, function, elements per case etc).

Alternatively the 6R MATRIX Pre-defined range is suitable for comparison to industry standard models. Based on our well proven 6R heavy duty control relay, the 6R MATRIX system offers numerous benefits.


  • Single or double shot reclose with selectable auto reset mode
  • Modular packaging
  • Rack or flush mounting
  • Range of function types
  • Draw out module
  • M4 screw terminals
  • Operating & reset coils are available for 24, 32, 48, 110, 125 or 250 Volts DC
  • Time delay operate options
  • Contacts are of fine silver designed & manufactured to ensure low resistance & high reliability
  • Optional gold plated contacts suitable for low currents
  • Magnetic blowouts to improve contact switching capability may be fitted if required
  • Custom contact configuration
  • Custom labelling
  • High visibility electro-mechanical flag indication
  • Rugged modular construction
  • Made in Australia
