Description

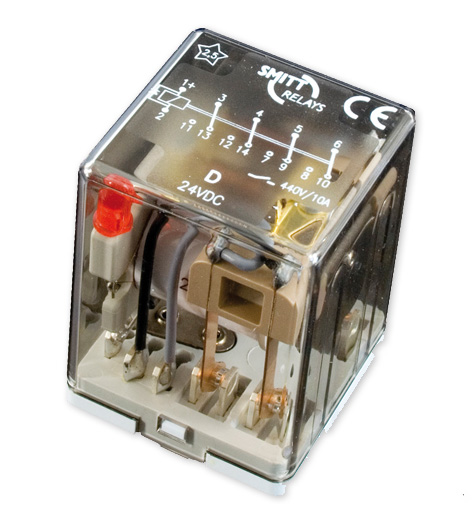

D relays, 4 C/O, 10A
Heavy duty relays for demanding applications, switching of AC&DC voltages, resistive and/or inductive loads.
-
Plug-in power relay
-
Smitt-style pinning
-

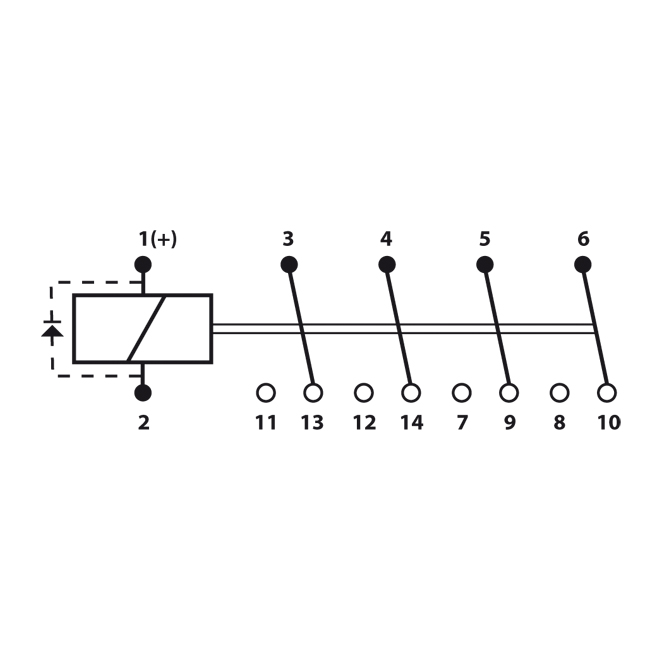

4 C/O contacts
-
Rated load 1 A /110 VDC1 , 10A/230 VAC1
-
Coil voltages 12…350 VDC, 12…440 VAC
-
AC & DC coil (DC coil standard with back EMF diode)
-
LED indicator
-
Integrated ‘snap-lock’ retaining clip
-

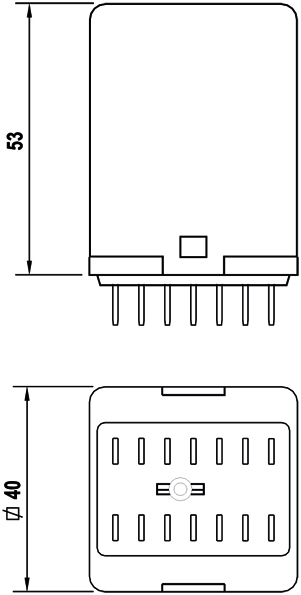

Dimensions 40 x 40 x 53 mm
See the datasheet in the download section for all specification and options.
See the accessories section for all suitable relay sockets and accessories.
