N.S1 signalling relays

N.S1 signalling and vital relays are a consistent, adaptable range of relays with plug-in connection, small size, modular construction, low power consumption, compliant to French and SNCF standards, conformity to UIC recommendation, Ag / Ag CdO contacts and 24 V standard.

Download:

brochure-signalling-vital-relays-n-s1-v1-6

  • N.S1-L-24-12.0.8 relay – Signalling, line

    The N.S1-L-24-12.0.8 24 VDC instantaneous electro-mechanical vital relay is a track side safety relay for the signalling railway market. It is a dual module « plug-in relay » with positive mechanical keying, equipped with 12 normally open contacts and 8 normally closed contacts. (more…)

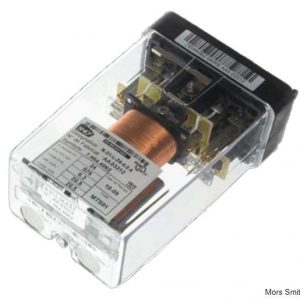

  • N.S1-L-24-4.0.4 relay – Signalling, line

    The N.S1-L-24-4.04 24 VDC instantaneous electro-mechanical vital relay is a track side safety relay for the signalling railway market. It is a single module « plug-in relay » with positive mechanical keying, equipped with 4 normally open contacts and 4 normally closed contacts. (more…)
  • N.S1-P-24-12.0.8 relay – Signalling, post

    The N.S1-P-24-12.0.8 24 VDC instantaneous electro-mechanical vital relay is a track side safety relay for the signalling railway market. It is a dual module « plug-in relay » with positive mechanical keying, equipped with 12 normally open contacts and 8 normally closed contacts. (more…)
  • N.S1-P-24-4.0.4 relay – Signalling, post

    The N.S1-P-24-4.04 24 VDC instantaneous electro-mechanical vital relay is a track side safety relay for the signalling railway market. It is a single module « plug-in relay » with positive mechanical keying, equipped with 4 normally open contacts and 4 normally closed contacts. (more…)
  • N.S1-R-24-4.0.4 relay – Signalling, switch machine motor command

    The N.S1-R-24-4.04 24 VDC instantaneous electro-mechanical vital relay for ‘switch machine motor’ command is a track side safety relay for the signalling railway market. It is a single module « plug-in relay » with positive mechanical keying, equipped with 4 normally open contacts and 4 normally closed contacts. (more…)
