RelayDoc

Description

The Mors Smitt RelayDoc is designed and customised to provide controlled auditable testing of customer specific BR930/Q-Style signalling relays in accordance with their original BRB design specifications.

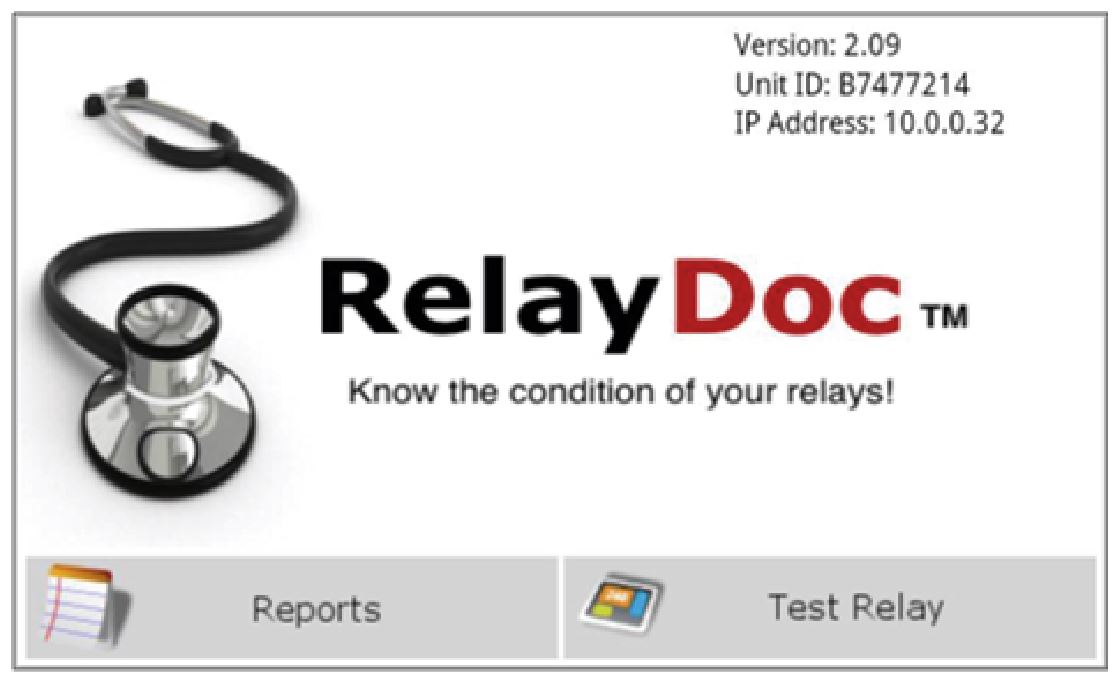

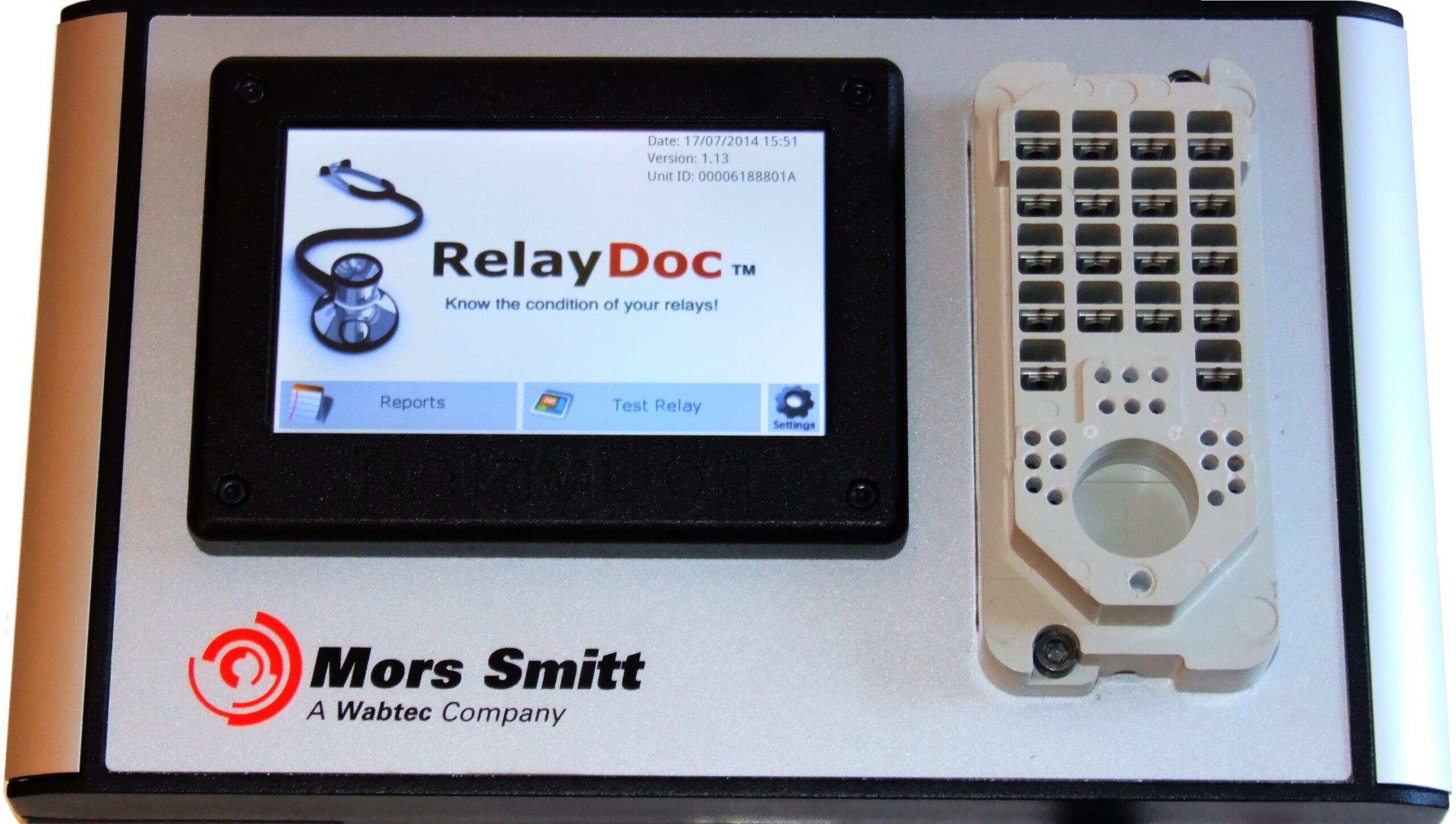

The Mors Smitt RelayDoc is designed and customised to provide controlled auditable testing of customer specific BR930/Q-Style signalling relays in  accordance with their original BRB design specifications. Most BR930/Q-Style  relays can be tested easily and quickly using an intuitive touch screen interface allowing immediate pass/fail results.

Test profiles are stored locally on each RelayDoc which is updated from a  web-server. These profiles can only be modified by MSUK on a global basis  ensuring that relays are always tested to the correct specification.

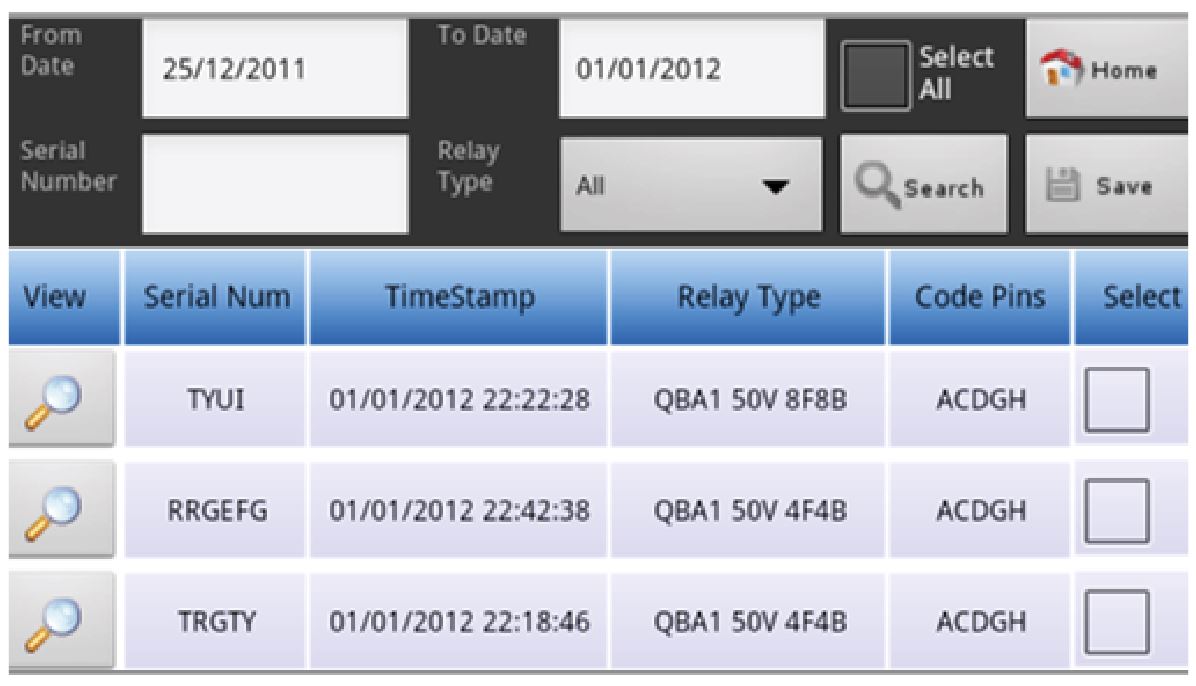

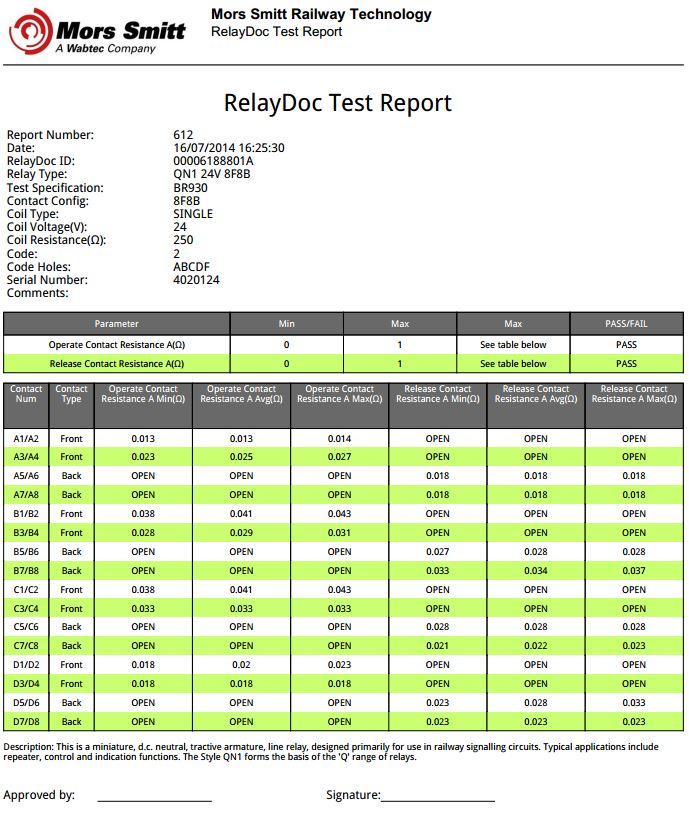

RelayDoc automatically detects the pin code and contact configuration of relays to be tested and records and saves all test results. Reports are displayed on the touch screen and stored on-board for later viewing or retrieval to a USB storage device.
Reports are also synchronised to a cloud database via LAN or optional Wi-Fi  providing analysis and reporting tools.

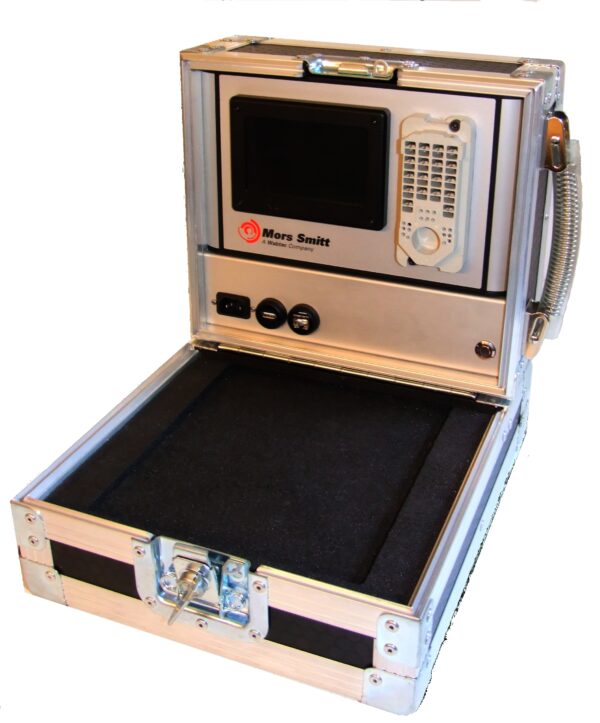

RelayDoc can be supplied in a rugged portable case which is ideal for workshop  or trackside use. Optional extras include a USB barcode reader used for entering  relay serial numbers.

Standard power supply voltage is 100 – 240V A.C. fed via an IEC 60320 C5 mains lead when wall mounted and an IEC 63320 C13 mains lead when mounted in the illustrated case.

Download:

datasheet-relaydoc

certificate
