Energy & high voltage measurements

The international railway markets demand focus on minimizing carbon footprints. Diminishing natural resources, raising energy costs, protection of the environment, de-regulation of train network traffic requires responsible and pro-active developments in the railway business.

At the same time new trains require more integrated solutions to simplify the design, to save place and weight.

Since several years, the metering on board is the essential step to go forward with Energy Efficiency and billing, resource and money saving.

CatEnergy is range of solution for energy measurement and traction control management, both for new built and retrofit railway application

Mors Smitt has developed a complete range of modular and scalable solution from essential train function to global energy management.

With accurate global measurement and energy calculation, integrated solution for train functions, detail consumption measurement and communication and added value ground server for data management, Mors Smitt give a complete solution to car builders, operators and infrastructure managers. Mors Smitt is recognized as a key supplier for product and system compliant with the most stringent applicable standard.

Accuracy		Integration		Analysis		Management



Key Features

• Energy Measurement System (EMS) compliant with EN50463, GM/RT2132, IEC62888 and TSI
• From global to detailed Energy consumption on rolling stock
• Outstanding accuracy
• Interoperability with all railway rolling stock and network
• Weight and space saving with all in one equipment device for all train functions (EMS, sensing device, catenary detection, short circuit & overcurrent detection)
• Modular and scalable interface (Train network, analog signal, logic output, GSM, GPS, etc.)
• Easy integration on any existing and new built train
• Ground server for data storage, processing and consumption analysis

•

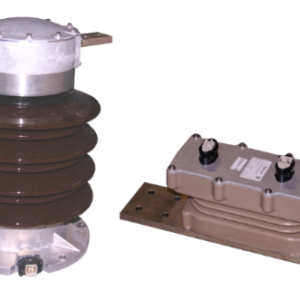

  CATenergy AC sensor

  The Mors Smitt CatEnergy AC sensor provide a proven, reliable, accurate and cost-effective solution for rolling stock. Based on its capacity of multi-voltage and current measurement, alone CatEnergy AC sensor could be use as essential product for energy measurement implementation on existing rolling stock as well as Traction control functionalities for new build train (e.g. safety catenary detection, traction synchronization, protection of main transformer by over current detection, etc.). Functions…
•

  CATenergy DC

  The Mors Smitt CatEnergy DC sensor provide an all in one proven, reliable, accurate and cost-effective solution for rolling stock. Based on its full energy measurement function integration with voltage and current measurement and energy calculation according to EN 50463, the CatEnergy DC is the perfect compact solution for energy measurement implementation on existing or new build rolling stock. Functions DC Voltage Measurement Function (VMF) according to EN 50463 DC…
•

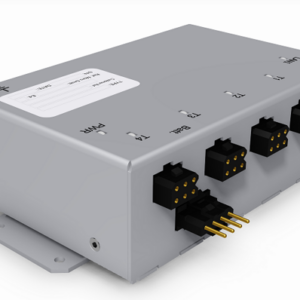

  CatEnergy Energy control unit

  The Mors Smitt CatEnergy Energy control unit provide an all in one proven, reliable, accurate and cost-effective solution for rolling stock. Including all standard function for Energy Measurement data handling System according to EN 50463, the CatEnergy Electronic Control unit is the perfect compact solution for energy measurement system completion on existing or new build rolling stock. Functions Data Handling System (DHS) AC and/or DC according to EN 50463 AC…
•

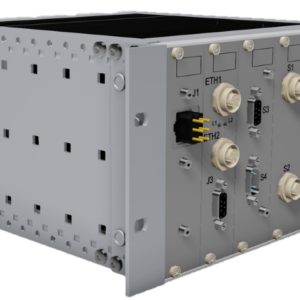

  CatEnergy Traction control unit

  The Mors Smitt CatEnergy Traction control unit provide all essential function for traction unit. The development focused on high reliability allows to provide car builders with high quality solution. The extreme level of functional integration and modularity is an asset for modern rolling stock optimized design. The Mors Smitt CatEnergy Traction control unit could also include all Energy function with energy calculation and Data Handling System to create the most…
•

  Energy meter

  Mors Smitt™ energy meter is a compact solution to measure energy consumption across multiple sub-systems of the rail transport that ensures: Complete, accurate overview of energy consumption Provides data for energy management, savings, and maintenance Easy installation Features: Ultra-compact energy meter with 4 input channels Single-phase or multiphase, AC/DC Auxiliary power supply integrated for sensors Compliant with all relevant rail directives Ethernet / RS485 communication / option MVB VIDEO
