N.S1-R-24-4.0.4 relay – Signalling, switch machine motor command

Categories: , , ,

Description

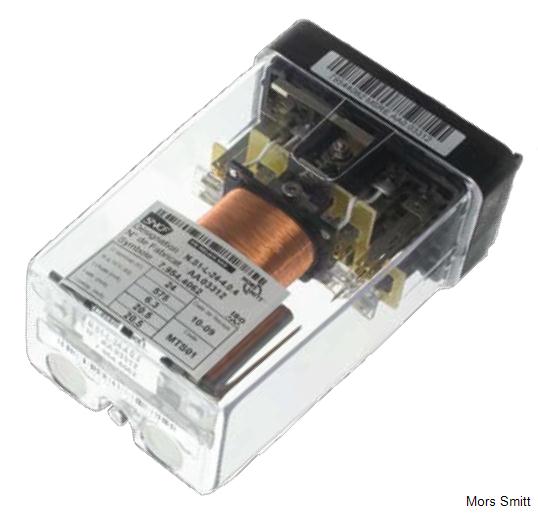

The N.S1-R-24-4.04 24 VDC instantaneous electro-mechanical vital relay for ‘switch machine motor’ command is a track side safety relay for the signalling railway market.
It is a single module « plug-in relay » with positive mechanical keying, equipped with 4 normally open contacts and 4 normally closed contacts.

Application

The N.S1-R-24-4.04 is designed for applications such as signaling light control, automatic gate control, point mechanism control, control room.

Benefits

  • Proven reliable
  • Long life cycle
  • Easy to maintain and replace
  • Low life cycle cost
  • No maintenance

Railway compliancy

  • NF F 70-030 August 2004
  • NF F 70-020 September 1991
  • NF F 70-031 – Type approval testing procedure
  • NF F 70-32 – Series acceptance test procedure

Download:

datasheet-n-s1-r-24-4-0-4-v3-0
