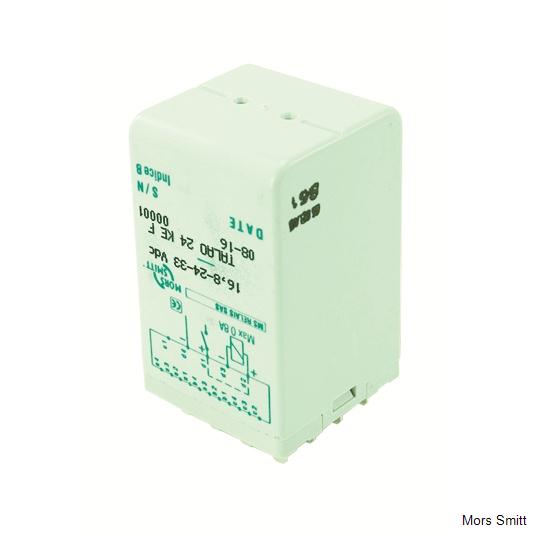

TALAO Electronic timer module, delay on pull-in

Description

The electronic timer TALAO is a delay on pull-in timing module. It offers an extended range duration (0.25 seconds to 63.75 minutes) and controls an external load from a common source. The time delay with programmable lag is specified by external connections.
The plug-in design offers secure locking feature for maximum ease of maintenance (no wires need to be disconnected or other hardware removed for relay inspection or replacement). The resistance to impact and vibration is conform to standards in force for Railway Transported Equipment.
Positive mechanical keying of relay to socket is built into relay and socket during manufacture and terminal identifications are clearly marked on identification plate that is permanently attached to the relay.
The TALAO relays is pluggable in the following sockets: EA 102 A, EA 102 AF, EA 103 AF, EA 104 A, EA 104 AF, EA 105 AF, EA 112 AF.

Application

The TALAO timing relay is designed for applications with a programmable timing function used for example in HVAC and lighting.

Features

  • Delay on pull-in timing module
  • Extended time delay range with additive time combination
  • Delay range from 0.25 s up to 63.75 min
  • Time delay programmable by external connections
  • Plug-in design with secure locking feature for maximum ease of maintenance
  • -40 °C…+85 °C operating temperature

Benefits

  • Proven reliable
  • Long life cycle
  • Accurate timing selection finger safe
  • Easy to maintain and replace
  • Low life cycle cost
  • No maintenance

Railway compliancy

  • CF 62-003 On board railway relays
  • NF F 16-101/102 Fire behaviour – Railway rolling stock
  • EN 50155 Railway application – electronic equipment used on rolling stock
  • IEC 61373 Railway application – shock and vibration tests
