Flashing relays

•

  1019 relay – Solid state flashing

  The 1019 is a solid state flashing relay to control filament light bulbs. The independant output channels configuration and flashing delay are factory set and depend on 1019 series. The plug-in design offers secure locking feature for maximum ease of maintenance (no wires need to be disconnected or other hardware removed for relay inspection or replacement). The resistance to impact and vibration is conforming the standards in force for Railway…
•

  CTD4-U200N relay – customizable timer, 4 pole

  Plug-in electronic railway customizable timer relay with four change-over contacts. Fully customizable according customer’s requirements concerning timing diagram and delay type. Almost any timing diagram is possible: for example time delays with delay on pull-in, on drop-out or both, symmetrical or asymmetrical flashing, 1-shot, 2-shot, 3-shot etc. or a combination of all these. Delay/pulse times are adjustable with 1 or 2 lockable knobs. The relay can also be supplied with…
•

  FDA4-U200N relay – Flashing, 4 pole

  Plug-in electronic railway flashing relay with four changeover contacts for reliable switching of very low currents (1 mA @ 5 VDC) up to currents of 10A @ 110VDC. When the relay is activated the coil starts with an interval. The pulse time and interval time are equal. The relay is supplied with a fixed pulsing frequency. The relay can also be supplied with an adjustable pulsing frequency (relay with knob).…
•

  FDC4-U200N relay – Flashing, 4 pole

  Plug-in electronic railway flashing relay with four changeover contacts for reliable switching of very low currents (1 mA @ 5 VDC) up to currents of 10A @ 110VDC. When the relay is activated the coil is energized with a pulse, which is repeated after the fixed cycle time until the relay is de-activated. The pulse time is adjustable with a lockable knob. The relay can also be supplied with a…
•

  FDG-U200 relay – Flashing, 2 solid state contacts

  Plug-in electronic railway pulsing relay with two solid state contacts in counterphase. The pulse time and interval time are equal. There is no galvanic isolation between coil circuit and contacts. The construction of the relay and choice of materials makes the FDG-U200 relay suitable to withstand low and high temperatures, shock & vibrating and dry to humid environments. No external retaining clip needed as integrated ‘snap-lock’ will hold relay into…
•

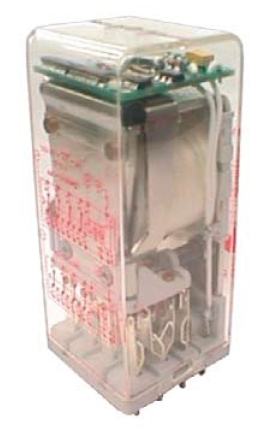

  T2CBBU 400 relay – Asymetrical flasher, 4 contacts

  The T2CBBU 400 is an asymetrical flasher relay with 4 double make / double break C/O contacts (form Z). The first period is adjusted 0.1 s...1.5 s and second period 1 s...15 s. Time delay is achieved by combination of relay dip switch The access to dip switch is available by removing time delay cover. This feature prohibits frivolous field time delay setting. Timing can be also be factory set…
•

  T2CBLBU 400 relay – Asymetrical flasher, 4 contacts

  The T2CBLBU 400 is an asymetrical flasher relay with 4 double make / double break C/O contacts (form Z). The first period is adjusted 0.1 s...1.5 s and second period 1 s...150 s. Time delay is achieved by combination of relay dip switch The access to dip switch is available by removing time delay cover. This feature prohibits frivolous field time delay setting. Timing can be also be factory set…
•

  TCBBU 400 relay – Flashing, 4 contacts

  The TCBBU 400 is a flashing relay with 4 double make / double break C/O contacts (form Z). The pulse duration is fully programmable with a dip switch from 0.25 s to 63.75 min. The access to dip switch is available by removing time delay cover. This feature prohibits frivolous field time delay setting. The plug-in design offers secure locking feature for maximum ease of maintenance (no wires need to…
