Timer relays

A Timer Relay is a combination of an electromechanical output relay and a control circuit. The contacts will open or close before or after a pre-selected, timed interval.

Time delay relays are initiated or triggered by one of two methods:

  • application of input voltage/auxiliary supply will either initiate the unit or make it ready to initiate when a trigger signal is applied
  • applying a trigger signal is used to initiate the unit after input voltage has been applied. This trigger signal can either be a control switch (dry contact switch) or a power trigger (voltage).



Available Timer Relay Types:

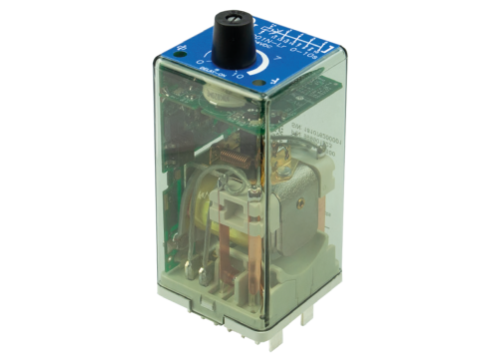

Delay-on

3-Delay-On

When the relay is activated there is a delay on pull-in.

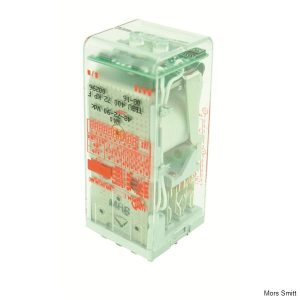

One-Shot (falling edge)

5-One-Shot falling edge

Upon application of input voltage, the time delay relay is ready to accept a trigger. When the trigger is applied, the output remains de-energized. Upon removal of the trigger, the output is energized and the time delay (t) begins. At the end of the time delay (t), the output is de-energized.

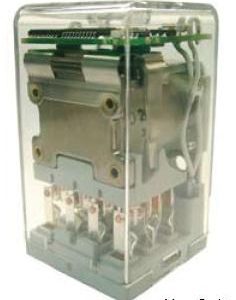

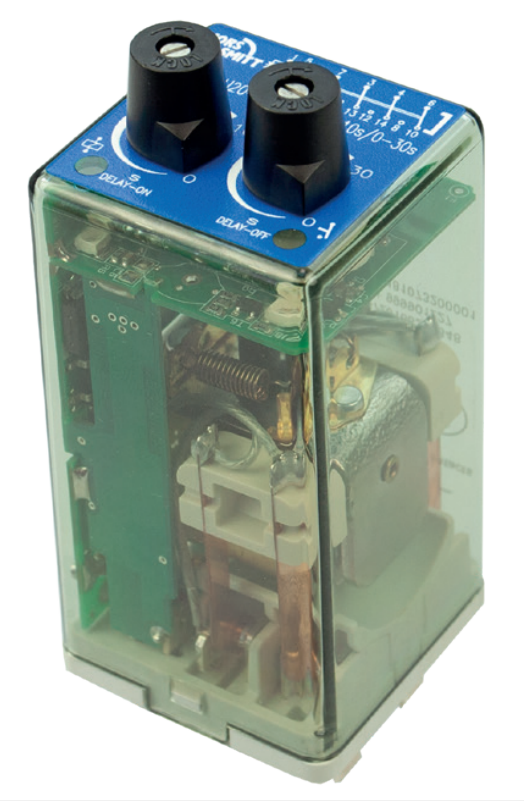

 Delay-on & Delay-off

2-Delay-On and Delay-Off

The relay needs an auxiliary supply and can be activated with an external N/O contact or with a DC voltage. When the relay is activated there is a delay on pull-in. When the relay is not energized anymore there is a delay on drop-out

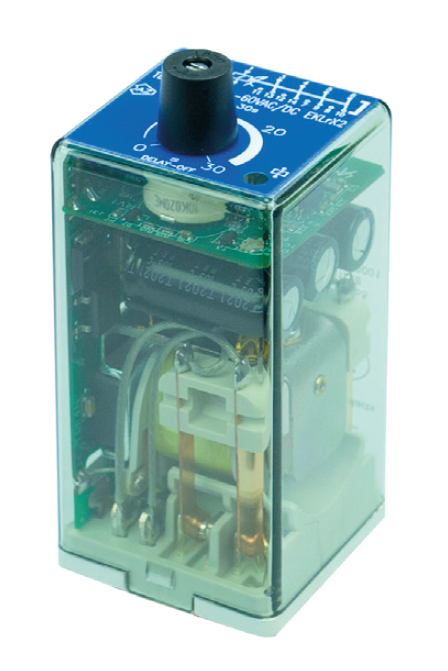

Delay-off

1-delay-off

When the relay is not energized anymore there is a delay on drop-out, without any auxiliary power supply.

 Two-Shots (rising edge & falling edge

6-Two-Shots - rising edge & falling edge

Upon application of input voltage, the relay is ready to accept trigger signal. Upon application of the trigger signal (rising edge), the relay contacts transfer and the preset time T begins. During time-out, the trigger signal is ignored. The relay resets by applying the trigger switch (falling edge) when the relay is not energized.

Flashing

4-Flashing

Upon application of input voltage, the time delay begins (T). At the end of the time delay, the output is energized and remains in that condition for the same time delay (T). At the end of this time delay, the output is de-energized and remains in that condition for the time delay T. At the end of the time delay , the output is energized and the sequence repeats until input voltage is removed.

  • 1019 relay – Solid state flashing

     The 1019 is a solid state flashing relay to control filament light bulbs. The independant output channels configuration and flashing delay are factory set and depend on 1019 series. The plug-in design offers secure locking feature for maximum ease of maintenance (no wires need to be disconnected or other hardware removed for relay inspection or replacement). The resistance to impact and vibration is conforming the standards in force for Railway…

  • CTD4-U relay – Multifunction customizable timer, 4 pole

     Plug-in electronic railway customizable timer relay with four change-over contacts. Fully customizable according customer’s requirements concerning timing diagram and delay type. Almost any timing diagram is possible: for example time delays with delay on pull-in, on drop-out or both, symmetrical or asymmetrical flashing, 1-shot, 2-shot, 3-shot etc. or a combination of all these. Delay/pulse times are adjustable with 1 or 2 lockable knobs. The relay can also be supplied with…

  • FDA-U200 relay – Flashing, 2 pole

     Plug-in electronic railway pulsing relay with two change-over contacts. When the relay is activated the coil starts with an interval. The pulse time and interval time are equal. The pulsing frequency is adjustable with a lockable knob. The relay can also be supplier with a fixed pulsing frequency (no knob). The relay is standard equipped with double zener diode coil protection. The construction of the relay and choice of materials…

  • FDA-U300 relay – Flashing, AC input, 2 pole

     Plug-in electronic railway pulsing relay with two change-over contacts, suitable for AC coil voltages with a frequency of 50/60 Hz. When the relay is activated the coil starts with an interval. The pulse time and interval time are equal. The pulsing frequency is adjustable with a lockable knob. The relay can also be supplier with a fixed pulsing frequency (no knob). The relay is standard equipped with double zener diode…

  • FDA4-U200 relay – Flashing, 4 pole

     Plug-in electronic railway pulsing relay with four change-over contacts. When the relay is activated the coil starts with an interval. The pulse time and interval time are equal. The relay is supplied with a fixed pulsing frequency. The relay can also be supplied with an adjustable pulsing frequency (relay with knob). The relay is equipped with two LEDs which indicate the presence of power supply and the energizing of the…

  • FDC-U200 relay – Flashing, 2 pole

     Plug-in electronic railway pulsing relay with two change-over contacts. When the relay is activated the coil is energized with a pulse. The pulse time and interval time are fixed (standard on 1 second and 30 seconds). The construction of the relay and choice of materials makes the FDC-U200 relay suitable to withstand low and high temperatures, shock & vibrating and dry to humid environments. No external retaining clip needed as…

  • FDC4-U200 relay – Flashing, 4 pole

     Plug-in electronic railway flashing timer relay with four change-over contacts. When the relay is activated the coil is energized with a pulse. The pulse time is adjustable with a lockable knob. The relay can also be supplied with a fixed pulse time (no knob). The relay is equipped with two LEDs which indicate the presence of power supply and the energizing of the coil. Also standard equipped with magnetic arc…

  • FDG-U200 relay – Flashing, 2 solid state contacts

     Plug-in electronic railway pulsing relay with two solid state contacts in counterphase. The pulse time and interval time are equal. There is no galvanic isolation between coil circuit and contacts. The construction of the relay and choice of materials makes the FDG-U200 relay suitable to withstand low and high temperatures, shock & vibrating and dry to humid environments. No external retaining clip needed as integrated ‘snap-lock’ will hold relay into…

  • NTBBOR 400 relay – Delay-on drop-out, 4 C/O

     The NTBBOR 400 is a delay-on drop-out with negative command relay with 4 double make / double break C/O contacts (form Z). The delay is fully programmable with a dip switch from 0.25 s to 63.75 min. The access to dip switch is available by removing time delay cover. This feature prohibits frivolous field time delay setting. The plug-in design offers secure locking feature for maximum ease of maintenance (no…

  • T2CBBU 400 relay – Asymetrical flasher, 4 contacts

     The T2CBBU 400 is an asymetrical flasher relay with 4 double make / double break C/O contacts (form Z). The first period is adjusted 0.1 s...1.5 s and second period 1 s...15 s. Time delay is achieved by combination of relay dip switch The access to dip switch is available by removing time delay cover. This feature prohibits frivolous field time delay setting. Timing can be also be factory set…

  • T2CBLBU 400 relay – Asymetrical flasher, 4 contacts

     The T2CBLBU 400 is an asymetrical flasher relay with 4 double make / double break C/O contacts (form Z). The first period is adjusted 0.1 s...1.5 s and second period 1 s...150 s. Time delay is achieved by combination of relay dip switch The access to dip switch is available by removing time delay cover. This feature prohibits frivolous field time delay setting. Timing can be also be factory set…

  • T2PBAU 400 relay – Two-shot time delay

     The T2PBAU 400 is a two-shot time delay relay with 4 double make / double break C/O contacts (form Z). The shots are triggered by the up and down front of the command input. The delay is fully programmable with a dip switch from 0.25 s to 63 min. The access to dip switch is available by removing time delay cover. This feature prohibits frivolous field time delay setting. The…

  • TA3 – Electronic timer module, delay on drop-out (parallel wiring)

     The electronic timer TA3 is a delay on drop-out timing module wired in parallel. It maintains power on load during a specific time when load power is off. The delay time is set in factory between 0.125 s and 90 min. Longer times are possible upon request. The plug-in design offers secure locking feature for maximum ease of maintenance (no wires need to be disconnected or other hardware removed for…

  • TAC relay – Electronic timer, windshield wiper control module

     The electronic timer TAC is a train windshield wiper monitoring module. A simple turn of a cals potentiometer allows to set the wiping sequence from one every 3 seconds to one every 30 seconds. The plug-in design offers secure locking feature for maximum ease of maintenance (no wires need to be disconnected or other hardware removed for relay inspection or replacement). The resistance to impact and vibration is conform to…

  • TALAO Electronic timer module, delay on pull-in

     The electronic timer TALAO is a delay on pull-in timing module. It offers an extended range duration (0.25 seconds to 63.75 minutes) and controls an external load from a common source. The time delay with programmable lag is specified by external connections. The plug-in design offers secure locking feature for maximum ease of maintenance (no wires need to be disconnected or other hardware removed for relay inspection or replacement). The…

  • TALOR electronic timer module

     The electronic timer TALOR is a delay on drop-out timing module. It offers an extended range duration (0.25 seconds to 63.75 minutes) and controls an external load from a common source. The time delay with programmable lag is specified by external connections. The plug-in design offers secure locking feature for maximum ease of maintenance (no wires need to be disconnected or other hardware removed for relay inspection or replacement). The…
