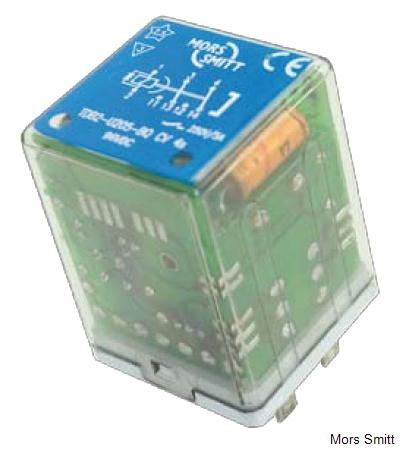

TDB2-U200 relay – Timer, delay-on, 2 pole

Description

Plug-in electronic railway timer relay with two change-over contacts. When the relay is activated there is a delay on pull-in. The delay time is adjustable with a lockable knob. The relay can also be supplied with a fixed time delay (no knob).
The construction of the relay and choice of materials makes the TDB2-U200 relay suitable to withstand low and high temperatures, shock & vibrating and dry to humid environments.
No external retaining clip needed as integrated ‘snap-lock’ will hold relay into socket under all circumstances and mounting directions.
Compact design, choice of many options and a wide range of sockets makes the TDB2-U200 relay an easy and flexible solution to use.

Application

These relay series are designed for demanding rolling stock applications. The TDB2-U200 is used in applications where a time delay is necessary after activating the relay.

Features

  • Time delay relay, delay on pull-in
  • Compact plug-in design
  • 2 C/O contacts
  • Delay time adjustable with lockable knob
  • Also available with fixed time delay
  • Total time delay range: 0.1 s…30 min
  • Weld-no-transfer contacts
  • Flat, square and silver plated relays pins for excellent socket connection
  • Wide range sockets
  • Integrated snap lock
  • Transparent cover
  • Optional positive mechanical keying relay to socket

Benefits

  • Proven reliable
  • Long term availability
  • Easy to maintain
  • Low life cycle cost
  • No maintenance

Railway compliancy

  • EN 50155 Electronic equipment used on rolling stock for railway applications
  • IEC 60571 Electronic equipment used on railway vehicles
  • IEC 60077 Electrical equipment for rolling stock in railway applications
  • IEC 60947 Low voltage switch gear and control gear
  • IEC 61373 Rolling stock equipment – Shock and vibration test
  • IEC 60947-5-4 Electromechanical components for control applications. This standard examines both coil and contact specifications in depth
  • EN 50121 Electromagnetic compatibility for railway applications
  • NF F 16-101/102, TS 45545-2 Fire behaviour – Railway rolling stock
  • NF F 62-002 On-off contact relays and  fixed connections
