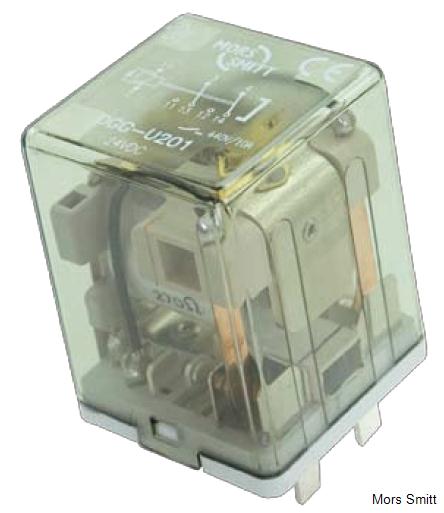

DGG-U200 relay – Large pull-in voltage range


Plug-in railway relay with two change-over contacts and a large pull-in voltage range: 40% – 125% of the nominal voltage.
Standard equipped with a back EMF suppression diode and magnetic arc blow-out for high breaking capacity and long contact life. No external retaining clip needed as integrated ‘snap-lock’ will hold relay into the socket under all circumstances and mounting directions.
The construction of the relay and choice of materials makes the DGG-U200 relay suitable to withstand low and high temperatures, shock & vibrating and dry to very humid environments.
Compact design, choice of many options and a wide range of sockets makes the DGG-U200 relay an easy and flexible solution to use.


These relay series are designed for demanding rolling stock applications such as doorcontrol. The DGG-U200 is used in applications with a big variation in power supply, or with very long power lines.


  • Sensitive coil (40% Unom)
  • Low operating voltage
  • Compact plug-in design
  • Instantaneous, 2 C/O contacts
  • Back EMF suppression diode
  • Magnetic arc blow-out
  • Flat, square and silver plated relay pins for excellent socket connection
  • Wide range sockets
  • Integrated snap lock
  • Transparent cover
  • High DC breaking capacity
  • Optional positive mechanical keying relay to socket
  • Flexibility by many options


  • Proven reliable
  • Long term availability
  • Easy to maintain
  • Low life cycle cost
  • No maintenance

Railway compliancy

  • EN 50155 Electronic equipment used on rolling stock for railway applications
  • IEC 60571 Electronic equipment used on railway vehicles
  • IEC 60077 Electrical equipment for rolling stock in railway applications
  • IEC 60947 Low voltage switch gear and control gear
  • IEC 61373 Rolling stock equipment – Shock and vibration test
  • EN 50121 Electromagnetic compatibility for railway applications
  • NF F 16-101/102, TS 45545-2 Fire behaviour – Railway rolling stock
  • IEC 60529 European standard describes the protection class (IP-code)
  • NF F 62-002 On-off contact relays and fixed connections
